Dong Guang County Xinlongsheng Carton Machinery Manufacturing Factory

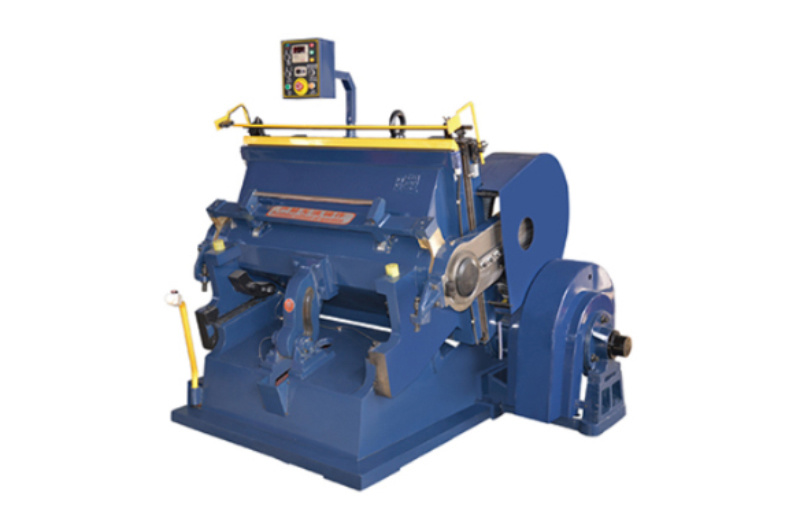

Manual Die Cutting & Creasing Machine
Die-cutting and creasing machine are available for many materials, such as hardboard, corrugated board, plastic and leather. It is wildly used in printing, package, decoration industry, etc. The products are sold well in the global due to its high quality and good service.
Keywords:
Classification:
Die-cutting creasing machine
Product details
APPLICATION
Die-cutting and creasing machine are available for many materials, such as hardboard, corrugated board, plastic and leather. It is wildly used in printing, package, decoration industry, etc. The products are sold well in the global due to its high quality and good service.
SPECIFICATIONS
|
Model |
Max Cutting Area |
Working speed |
Creasing cutting length |
Molor |
Weight |
Overall Dimensions |
|
PYQ401C |
750x520mm |
28±2(stroes/min) |
＜15m |
2.2kw |
2000kg |
1260x1350x1280mm |
|
PYQ203D |
930x670mm |
23±2(stroes/min) |
＜25m |
4.0kw |
3000kg |
1800x1600x1600mm |
|
ML 1100 |
1100x800mm |
20±2(stroes/min) |
＜32m |
5.5kw |
4500kg |
1900x1800x1700mm |
|
ML 1200 |
1200x830mm |
20±2(stroes/min) |
＜35m |
5.5kw |
4800kg |
1900x2000x1700mm |
|
ML 1300 |
1300x920mm |
18±2(stroes/min) |
＜40m |
5.5kw/7.5kw |
6000kg |
2000x2400x1800mm |
|
ML 1400 |
1400x1000mm |
18±2(stroes/min) |
＜45m |
5.5kw/7.5kw |
6500kg |
2000x2450x1900mm |
|
ML 1500 |
1500x1050mm |
18±2(stroes/min) |
＜45m |
5.5kw/7.5kw |
7000kg |
2000x2500x1930mm |
|
ML 1600 |
1600x1250mm |
16±2(stroes/min) |
＜50m |
11kw |
11000kg |
2170x2560x2130mm |
|
ML 1800 |
1800x1300mm |
16±2(stroes/min) |
＜62m |
15kw |
13500kg |
2240x2800x2230mm |
|
ML 2000 |
2000x1400mm |
16±2(stroes/min) |
＜80m |
15kw |
14500kg |
2280x2900x2230mm |
|
ML 2200 |
2200×1450mm |
16±2(stroes/min) |
＜90m |
18kw |
16500kg |
2280x3000x2250mm |
