XLS-A Series Full Computerized High Speed Printing Slotting Rotary Die-Cutting Machine
This machine is controlled by computer. It can change order, revise, execute and memorize quickly.All electric components adopt famous brand.Adopt high-quality anilox roller and rubber roller, with good ink transfer effect. Optional: doctor blade system, with better printing effect.
Keywords:
Classification:
Carton printer slotter die-cutter machine
Product details
MACHINE FEATURES
◎ This machine is controlled by computer. It can change order, revise, execute and memorize quickly.
◎ All electric components adopt famous brand.
◎ Adopt high-quality anilox roller and rubber roller, with good ink transfer effect. Optional: doctor blade system, with better printing effect.
◎ Main motor, paper feeding fan, phase motor all adopt frequency conversion motor, inverter control, energy saving, stable start.
◎ One-key adjust all feeding pressure, printing pressure, easy to operate. No need to enter the machine to adjust, the touch screen display all the current pressure values, save adjustment time and labor costs, improve production efficiency.
◎ Each printing unit is equipped with computer ink shortage alarm system and pressing type ink supply system.
◎ Wallboard and important parts are made by big CNC machining center.
◎ With phase planetary gear structure, frequency conversion control phase adjustment, fast adjustment speed, with high precision.
◎ Main transmission gear is made of high-quality alloy steel 20CrMnTi, which is carburized and grinded to ensure the long-term transmission accuracy.
◎ The transmission gears adopt keyless connecting ring to eliminate gap and improve the printing and die-cutting precision.
◎ All rollers are made of high-quality steel, with dynamic and static balance correction to ensure the stable and reliable operation at high speed.
◎ Spray lubrication of the whole machine, all units are equipped with oil level balancing device.
SPECIFICATIONS
|
XLS-A Series Full Computerized High Speed Printing Slotting Rotary Die-Cutting Machine |
|||||||||
|
Parameter |
Unit |
Model |
|||||||
|
280*2400 |
336*2600 |
408*2600 |
480*2600 |
||||||
|
Inner width |
mm |
2400 |
2600 |
2600 |
2600 |
||||
|
Max feeding size |
mm |
810*2200 |
980*2400 |
1200*2400 |
1420*2400 |
||||
|
Min feeding size |
mm |
240*450 |
270*500 |
330*600 |
350*600 |
||||
|
Max printing size |
mm |
810*2000 |
980*2250 |
1200*2250 |
1420*2250 |
||||
|
Max design speed |
Pcs/in |
400 |
400 |
300 |
260 |
||||
|
Max running speed |
Pcs/min |
320 |
300 |
260 |
200 |
||||
|
Printing accuracy |
mm |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
||||
|
Standard plate thickness |
mm |
7.2 |
7.2 |
7.2 |
7.2 |
||||
|
Cardboard thickness |
mm |
2-11 |
2-11 |
2-11 |
2-11 |
||||
|
Wallboard thickness |
mm |
60 |
60 |
60 |
60 |
||||
|
XLS-A Series Full Computerized High Speed Printing Slotting Rotary Die-Cutting Machine |
|||||||||
|
Parameter |
Unit |
Model |
|||||||
|
280*2400 |
336*2600 |
408*2600 |
480*2600 |
540*3000 |
600*3000 |
700*3400 |
|||
|
Inner width |
mm |
2400 |
2600 |
2600 |
2600 |
3000 |
3000 |
3400 |
|
|
Max feeding size |
mm |
810*2200 |
980*2400 |
1200*2400 |
1420*2400 |
1600*2800 |
1800*2800 |
2100*3200 |
|
|
Min feeding size |
mm |
240*450 |
270*600 |
330*600 |
350*600 |
400*700 |
450*700 |
500*800 |
|
|
Max printing size |
mm |
810*2000 |
980*2250 |
1200*2250 |
1420*2250 |
1600*2650 |
1800*2650 |
2100*3050 |
|
|
Max design speed |
Pcs/min |
300 |
300 |
260 |
230 |
200 |
180 |
160 |
|
|
Max running speed |
Pcs/min |
240 |
240 |
200 |
180 |
160 |
140 |
120 |
|
|
Printing accuracy |
mm |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
|
|
Standard plate thickness |
mm |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
|
|
Cardboard thickness |
mm |
2-11 |
2-11 |
2-11 |
2-11 |
2-11 |
2-11 |
2-11 |
|
|
Wallboard thickness |
mm |
50 |
50 |
50 |
50 |
60 |
60 |
60 |
|
Feeding Unit
◎ Light pressure type lead edge feeder system, frequency conversion motor drives double feeding rollers to feed paper. Paper feeding is stable and accurate.
◎ Vacuum suction lead edge feeding, frequency converter controls air volume, and the air volume can be adjusted according to the paperboard size.
◎ Pneumatic clapping device, accurate paper feeding positioning. Computerized adjust the left-right movement of side baffles and the forward and backward movement of back paper holder.
◎ Equipped with a strong dust removal device to remove the impurities on the paperboard surface and improve the printing quality.
◎ Floating paper feeding rubber roller, feeding rubber roller quick change structure.
◎ Double feeding roller structure.
◎ Upper feeding roller is wrapped with wear-resistant polyurethane soft rubber, and equipped with air pressure adjustment function to prevent the deformation of cardboard and ensure accurate paper feeding.
◎ The touch screen on feeding unit can control machine returning to zero, changing order, saving order, counting, start- up and stop, paper feeding, quantity setting,etc.
◎ Equipped with automatic unit separation function, each unit automatically separate according to the pre-set distance.

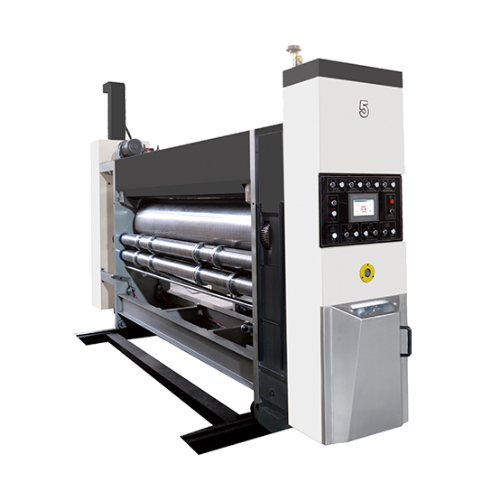

Printing Unit
◎ Printing roller and pressure roller are made of high quality steel, surface grinded and hard chrome plated.
◎ With dynamic balance correction, ensuring stable high-speed operation.
◎ Adopt the frequency conversion motor to adjust the printing phase, planetary gear structure, input size on touch screen to adjust. (Can be adjusted under both shutdown and operation status)
◎ Adopt plate hanging mechanism, easy and quick to operate.
◎ For installation and unloading of printing plate, equipped with foot switch to control forward and backward rotation for quick adjustment.
◎ Equipped with pneumatic disc brake mechanism, when the unit is separated for phase adjustment or cleaning, the brake mechanism restricts the rotation of the gear and keeps the original fixed point of the gear position.
◎ Paper feeding wheels adopt self-locking device. Adopts rack manual fast moving device and equipped with ruler reading device.
◎ Electrically adjust he horizontal position of plate roller, with adjustment range:±7mm.
◎ Each printing unit is equipped with computer ink shortage alarm, pressing type ink supply system, plate wiping memory, automatic roller lifting and other functions.

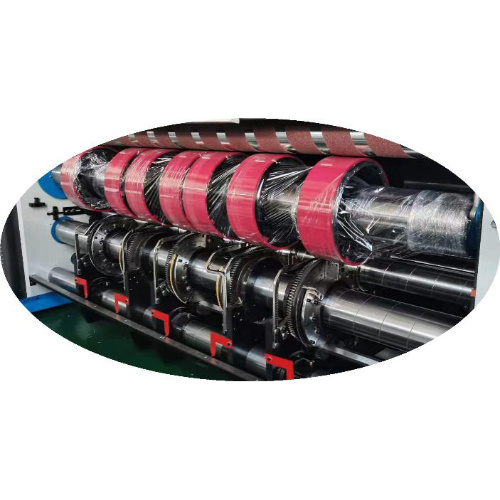

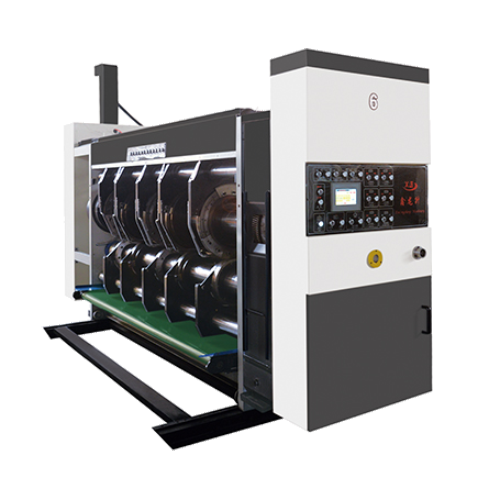

Computerized Slotting Unit
◎ Adopt six rollers structure, and is not easy to break after pre-creasing.
◎ Single shaft two blades slotting, box height adjustment using internal tooth structure, avoid lubricating oil pollution to carton.
◎ Transverse movement of slotting knife holder is adjusted by optical axis screw rod with linear guide shaft, which makes the movement more flexible and accurate.
◎ RV worm gear box is used for linkage between upper and lower knife holder to keep up and down alignment when moving, so as to prolong knives’ service life.
◎ The length, width, height and phase of the carton can be adjusted automatically by inputting the size on the touch screen, also can by electric adjustment separately.
◎ Equipped with waste removal device: all paper scraps and paper edges can be taken out from the machine.
Rotary Die-cutting Unit
◎ Upper and lower die-cutting rollers are made of high-quality steel, with high-speed dynamic balance correction, surface grinded and hard chrome plated.
◎ Automatic speed compensation for rubber roller, and the rubber roller automatically moves laterally in the production process.
◎ Equipped with rubber repair device, which can repair the rubber repeatedly, to prolong the service life of the rubber and save cost.
◎ Equipped with waste removal device: all paper scraps and paper edges can be taken out from the machine.
◎ Optional: Servo system control, independent drive, which eliminate the influence on printing and improve the die-cutting accuracy.
Quadruple die-cutting Unit
◎ Adopt Austria imported slotting and corner cutting knives, with no burr.
◎ Phase adjustment device, planetary gear type. The die-cutting phase is adjusted 360 degrees by computer and electric digital control. (Can be adjusted under both shutdown and operation status).
◎ Transverse movement of slotting knife holder is adjusted by optical axis screw rod with linear guide shaft, which makes the movement more flexible and accurate.
◎ RV worm gear box is used for linkage between upper and lower knife holder to keep up and down alignment when moving, so as to prolong knives’ service life.
◎ The length, width, height and phase of the carton can be adjusted automatically by inputting the size on the touch screen, also can by electric adjustment separately.
◎ Equipped with waste removal device: all paper scraps and paper edges can be taken out from the machine.
