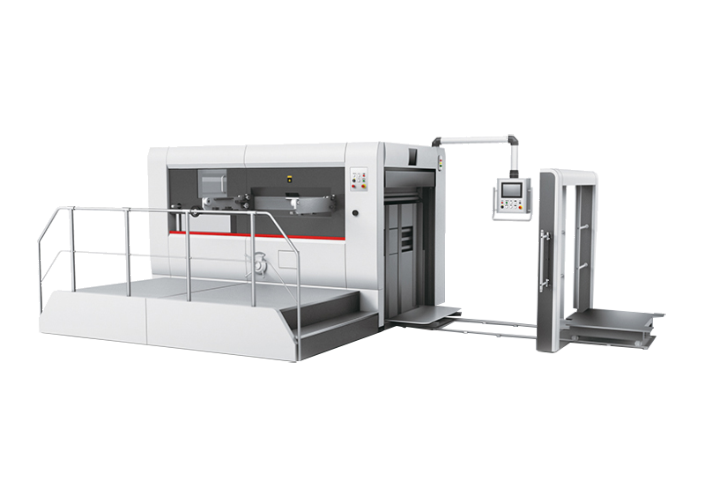

Semi-Automatic Die Cutting & Creasing Machine
The MY1200/1300/1500/1650 semi-automatic die-cutting and creasing machine is a specialized equipment developed based on the advantages of similar products at domestic and abroad, suitable for die-cutting high-end offset printing corrugated boxes and card boxes.
Keywords:
Classification:
Die-cutting creasing machine
Product details
FUNCTION
The MY1200/1300/1500/1650 semi-automatic die-cutting and creasing machine is a specialized equipment developed based on the advantages of similar products at domestic and abroad, suitable for die-cutting high-end offset printing corrugated boxes and card boxes. This machine applies high-strength grippers, and the advanced open grippers structure can adapt to various types of cardboard and corrugated cardboard; The front and rear positioning and side positioning mechanisms ensure the precision of paper die-cutting. Equipped with high-precision intermittent mechanism; Quick action pneumatic clutch, pneumatic lock plate. Using programmable controllers and HMI, digitally display the working speed, number of sheets processed, and total running time; The fault display of the machine makes troubleshooting operations very convenient. The main motor is controlled by frequency conversion, with stepless speed regulation and smooth operation. This machine is equipped with sensors and safety devices in multiple locations to ensure normal operation and personal safety. the front and back pressure can be adjusted individually, and manual turning is convenient and labor-saving. At the same time, it can also be used for die-cutting without grippers.
SPECIFACTIONS
|
Model |
MY-1200 |
MY-1300 |
MY-1500 |
MY-1650 |
|
Max paper size |
1230x850mm |
1320X940mm |
1510x1120mm |
1670x1250mm |
|
Min paper size |
350x450mm |
400x500mm |
450x550mm |
500x550mm |
|
Max die-cutting size |
1210x830mm |
1300x920mm |
1490x1100mm |
1650x1200mm |
|
Min gripper size |
8 |
8 |
8 |
8 |
|
Max die-cutting pressure |
300N/cm2 |
300N/cm2 |
320N/cm2 |
350N/cm2 |
|
Whiteboard |
200-2000g/m2 |
200-2000g/m2 |
200-2000g/m2 |
200-2000g/m2 |
|
Corrugated paperboard |
8mm (max thickness) |
8mm (max thickness) |
8mm (max thickness) |
8mm (max thickness) |
|
Die-cutting precision |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
|
Max die-cutting speed |
4500 sheets/h |
4500 sheets/h |
4500 sheets/h |
4000 sheets/h |
|
Max feeding pile height |
1400mm |
1400mm |
1400mm |
1400mm |
|
Max collecting pile height |
1200mm |
1250mm |
1250mm |
1300mm |
|
Total power |
11KW |
13.5KW |
13.5KW |
20KW |
|
Weight |
13T |
14.5T |
17.5T |
21T |
|
Dimensions |
4200x2200x2250mm |
4200x2250x2250mm |
4200x2300x2250mm |
5200x2450x2250mm |
