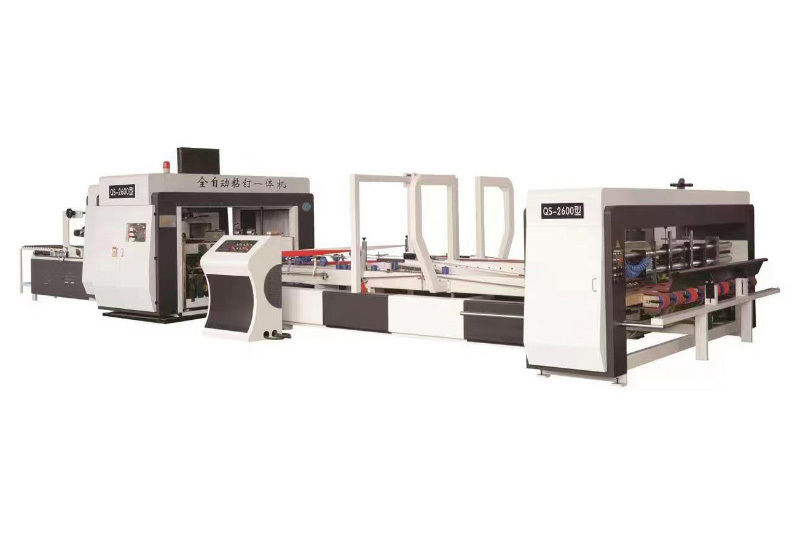

Automatic Carton Folding Gluing and Stitching Machine
Automatic carton folding gluing and stitching machine is composed of four parts: paper feeding section, folding gluing section, stitching section, and stacking ejecting section. With PLC digital display speed control, touch screen computerized adjust size, and a simple, fast, reliable, and accurate control mode.
Keywords:
Classification:
Carton stitching machine
Product details
MACHINE FEATURES
Automatic carton folding gluing and stitching machine is composed of four parts: paper feeding section, folding gluing section, stitching section, and stacking ejecting section. With PLC digital display speed control, touch screen computerized adjust size, and a simple, fast, reliable, and accurate control mode. With automatic paper feeding (gluing), automatic folding, automatic counting, automatic stacking ejecting, and front and rear synchronous dual frequency control. Design speed for gluing is 180 meters/minute, and the design speed for stitching is 600 nails/minute.
Technical parameters
|
MODEL |
QS-2600 |
QS-2800 |
QS-3000 |
|||
|
|
Gluing |
Stitching |
Gluing |
Stitching |
Gluing |
Stitching |
|

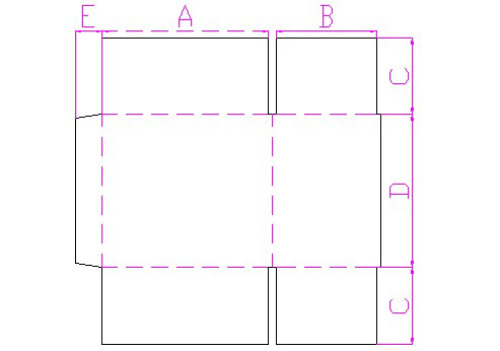

Max（A+B）＊2（mm） |
2600 |
2800 |
3000 |
|||
|
Min（A+B）＊2（mm） |
420 |
680 |
420 |
680 |
420 |
680 |
|
Max carton length-A (mm) |
780 |
850 |
950 |
|||
|
Min carton length-A (mm) |
130 |
210 |
130 |
210 |
130 |
210 |
|
Max carton width-B (mm) |
580 |
650 |
720 |
|||
|
Min carton width-B (mm) |
80 |
170 |
80 |
170 |
80 |
170 |
|
Max paper width-（C+D+C）(mm) |
1200 |
1200 |
1200 |
|||
|
Min paper width-（C+D+C）(mm) |
170 |
300 |
170 |
300 |
170 |
300 |
|
Max cover size- C (mm) |
430 |
430 |
430 |
|||
|
Min cover size- C (mm) |
50 |
50 |
50 |
|||
|
Max carton height- D (mm) |
700 |
700 |
700 |
|||
|
Min carton height-D (mm) |
100 |
100 |
100 |
|||
|
Max flap width (mm) |
40 |
40 |
40 |
|||
|
Nail distance (mm) |
30-150 |
30-150 |
30-150 |
|||
|
Speed |
120m/min |
70pcs/min |
120m/min |
70pcs/min |
120m/min |
70pcs/min |
|
Nail quantity |
1—99 |
1—99 |
1—99 |
|||
|
Stitching wire |
Width1.85*Thick0.75 |
Width1.85*Thick0.75 |
Width1.85*Thick0.75 |
|||
|
Total power |
18HP |
18HP |
20HP |
|||
|
Nailing speed (Nails/min) |
600 |
600 |
600 |
|||
|
Overall dimension (mm) |
15000×3500×1800 |
15000×3700×1800 |
15000×3900×1800 |
|||
|
Machine weight (T) |
6T |
7T |
9T |
|||
