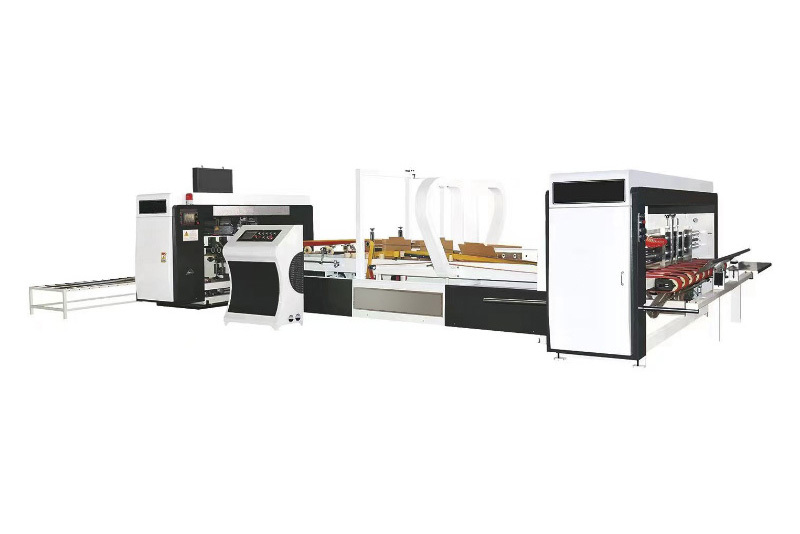

Automatic Carton Stitching Machine
Adopt two imported servo drives, with high accuracy and reduce mechanical transmission, effectively reduce the failure rate.Touch screen operation, convenient and fast for parameter changes (nail distance, number of nails, nail type, rear baffle).
Keywords:
Classification:
Carton stitching machine
Product details
MACHINE FEATURES
◎ Adopt two imported servo drives, with high accuracy and reduce mechanical transmission, effectively reduce the failure rate.
◎ Touch screen operation, convenient and fast for parameter changes (nail distance, number of nails, nail type, rear baffle).
◎ The whole control system adopts Omron PLC control system.
◎ All switches in the control box are from Taiwan Shihlin brand.
◎ The bottom mold and knife are made of German tungsten steel (wear-resistant).
◎ The stitching head is made of special steel, precisely processed by CNC.
◎ The feeding section is equipped with electric adjustment mechanism.
◎ With pneumatic alignment function.
◎ With electric lateral movement function of main engine.
◎ Computerized adjust size, and with fine tuning system.
◎ Can nailing single nail, double row nail, strengthen nail, can finish in one time, which meet the different requirements for nail types..
◎ Mechanical speed:600 nails/min.
Technical parameters
|
MODEL |
QS-2600 |
QS-2800 |
QS-3000 |
|
|
Stitching |
Stitching |
Stitching |
|
Max（A+B）＊2（mm） |
2600 |
2800 |
3000 |
|
Min（A+B）＊2（mm） |
680 |
680 |
680 |
|
Max carton length-A (mm) |
780 |
850 |
950 |
|
Min carton length-A (mm) |
210 |
210 |
210 |
|
Max carton width-B (mm) |
580 |
650 |
720 |
|
Min carton width-B (mm) |
170 |
170 |
170 |
|
Max paper width-（C+D+C）(mm) |
1200 |
1200 |
1200 |
|
Min paper width-（C+D+C）(mm) |
300 |
300 |
300 |
|
Max cover size- C (mm) |
430 |
430 |
430 |
|
Min cover size- C (mm) |
50 |
50 |
50 |
|
Max carton height- D (mm) |
700 |
700 |
700 |
|
Min carton height-D (mm) |
100 |
100 |
100 |
|
Max flap width (mm) |
40 |
40 |
40 |
|
Nail distance (mm) |
30-150 |
30-150 |
30-150 |
|
Speed |
70pcs/min |
70pcs/min |
70pcs/min |
|
Nail quantity |
1—99 |
1—99 |
1—99 |
|
Stitching wire |
Width 1.85*Thick 0.75 |
Width 1.85*Thick 0.75 |
Width 1.85*Thick 0.75 |
|
Total power |
18HP |
18HP |
18HP |
|
Nailing speed (Nails/min) |
600 |
600 |
600 |
Recommended
