Dong Guang County Xinlongsheng Carton Machinery Manufacturing Factory

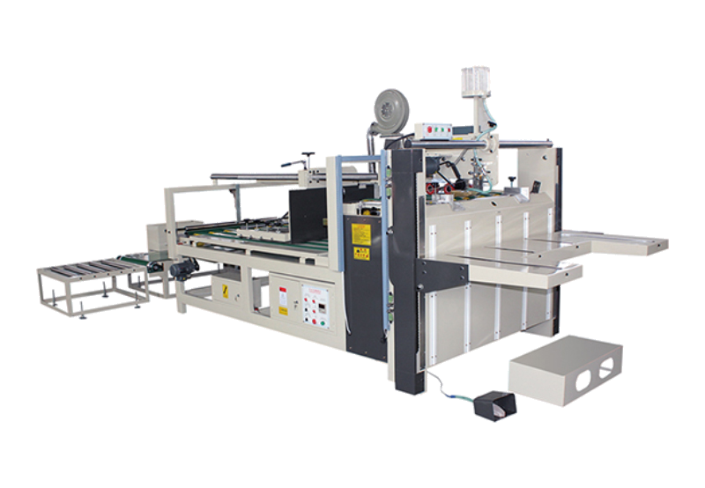

Semi-Automatic Carton Gluer Machine
This machine is the final process equipment of carton making, which is composed of frame, lifting table, front section conveying device, middle section conveying device, rear section transverse conveying device, paper receiving table and electrical control device. Suitable for 3 and 5 ply corrugated paperboard. With the advantages of high production efficiency, square and beautiful shaping effect, firm adhesion, convenient operation, energy saving and stable operation.
Keywords:
Classification:
Carton folder gluer machine
Product details
MACHINE FEATURES
This machine is the final process equipment of carton making, which is composed of frame, lifting table, front section conveying device, middle section conveying device, rear section transverse conveying device, paper receiving table and electrical control device. Suitable for 3 and 5 ply corrugated paperboard. With the advantages of high production efficiency, square and beautiful shaping effect, firm adhesion, convenient operation, energy saving and stable operation.
Technical parameters
|
Max size (L+W) |
2800mm |
|
Min size (L+W) |
340mm |
|
Max size (W+H) |
1515mm |
|
Min size (W+H) |
250mm |
|
Feeding height |
900mm |
|
Motor power |
2.3kw |
|
Machine weight |
2000kg |
|
Mechanical speed |
40pcs/min |
|
Overall dimensions |
L5500 x W1800 x H2000 |
