Dong Guang County Xinlongsheng Carton Machinery Manufacturing Factory

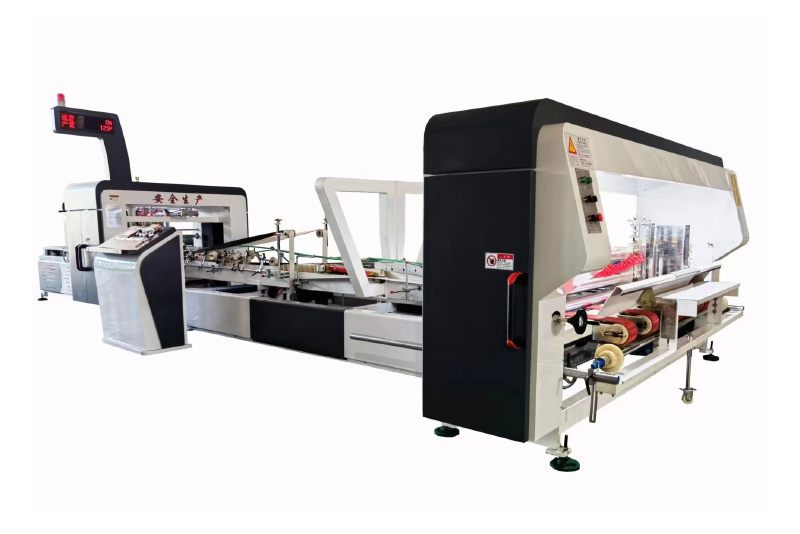

Automatic Carton Folder Gluer Machine
Automatic carton folder gluer machine consists of three parts: vacuum feeding part, gluing folding part and counting stacking ejector part.Average gluing speed 150m/min, speed fast, greatly improves production efficiency.HMI control, PLC computerized adjust size
Keywords:
Classification:
Carton folder gluer machine
Product details
MACHINE FEATURES
◎ Automatic carton folder gluer machine consists of three parts: vacuum feeding part, gluing folding part and counting stacking ejector part.
◎ Average gluing speed 150m/min, speed fast, greatly improves production efficiency.
◎ HMI control, PLC computerized adjust size
◎ Automatic feeding, automatic gluing and folding, automatic counting, automatic stacking, automatic pushing out.
◎ Adopt belt vacuum suction feeding system, accurate and reliable. And equipped with secondary creasing function, which makes the folding more accurate.
◎ Fault alarm display system, more convenient for operation and use.
◎ Double frequency conversion motors synchronous operation, with simple, convenient, reliable and accurate operation mode.
◎ Equipped with computer correction function, which eliminate scissors problem and makes folding more accurate.
◎ Remote control within 100 meters to realize remote controlling of main engine start and stop, main engine acceleration and deceleration, fan start and stop, paper feeding start and stop, emergency stop, left and right arm adjustment, glue applicator adjustment. Can realize one-click change order function.
◎ Can work together with automatic PP or PE bundling machine, speed fast, labor saving.
TECHNICAL PARAMETER
|
Parameter |
Model |
|
|
2800 Model |
3000 Model |
|
|

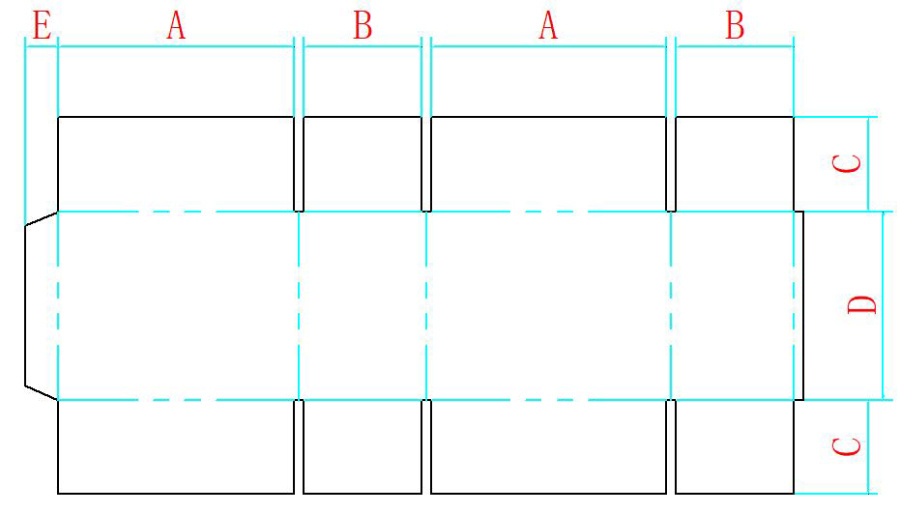

Max length（A+B）*2 |
2400mm |
2600mm |
|
Min length（A+B）*2 |
420mm |
660mm |
|
Max width（C+D+C） |
1100mm |
1100mm |
|
Min width（C+D+C） |
170mm |
170mm |
|
Max size---A |
880mm |
880mm |
|
Min size---A |
130mm |
200mm |
|
Max size---B |
400mm |
400mm |
|
Min size---B |
80mm |
100mm |
|
Max size---C |
400mm |
400mm |
|
Min size---C |
50mm |
50mm |
|
Min size---D |
50mm |
50mm |
|
Flap width---E |
40mm |
40mm |
|
Gluing wheel width |
30mm |
30mm |
|
Stacking height |
400mm |
400mm |
|
Machine size |
L12.5m*W4m |
L12.5m*W4.5m |
|
Working area |
L14m*W4m |
L14m*W4.5m |
Note: If the specifications of carton are special, we can design and manufacture according to customer’s needs. For cardboard above 2000mm length, A value can’t be greater than 1.5 times B value.
Automactic bundling machine (Optional)
◎ Strapping speed:16bales/min.
◎ PP strapping belt specification: Width 5mm, thickness 0.5-0.8mm.
◎ Minimum packing size: Width 400mm * Height 60mm.
◎ Standard frame size: Width 1250mm* Height 500mm.
