Dong Guang County Xinlongsheng Carton Machinery Manufacturing Factory

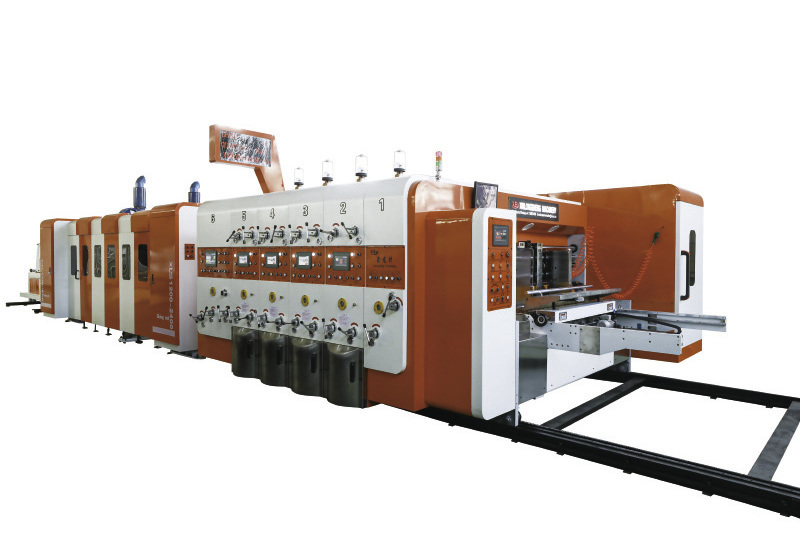

XLS-1200 Model High Speed Automatic Printer Folder Gluer Linkage Line
The average speed is 10000-20000pcs/hour, speed fast, which greatly improves the production efficiency.Automatic gluing, automatic folding, automatic correction, automatic counting, automatic stacking, only two people can finish the whole process.
Keywords:
Classification:
Carton printer folder gluer linkage line
Product details
MACHINE FEATURES
◎ The average speed is 10000-20000pcs/hour, speed fast, which greatly improves the production efficiency.
◎ Automatic gluing, automatic folding, automatic correction, automatic counting, automatic stacking, only two people can finish the whole process.
◎ The folding arm adopts elastic pressure wheel and belt to convey, and the conveying is accurate. The adjustment of carton folding size and paperboard width is completed automatically.
◎ Shaping counting and stacking part: automatic flapping, paper receiving, stacking, pushing out are all precisely controlled by frequency conversion motor, and the circulation speed is fast. The counting part can move left and right according to the folding size of paperboard.
◎ The folder gluer inline can be linked adjusted with the printing machine. The phase of each unit, the transverse phase of each unit, the position of the lead edge feeding baffle, the slotting and creasing position, etc. can be adjusted on the control panel of the folder gluer inline, which can avoid the cardboard waste caused by long adjustment time.
Technical parameters
|
XLS-1200 Model High Speed Automatic Printer Folder Gluer Linkage Line |
|
|
Model |
1200 Model |
| Max mechanical speed |
220 m/min |
| Min folding size（A*B） |
270*240 （mm） |
| Max folding size（A*B） |
1200*1200 （mm） |
| Width of flapping |
Below 45mm |
Gluing part
◎ Computerized adjust the position of gluing head, HMI control.
◎ With wheel type gluing system.
◎ With gluing wheel autorotation function when the machine is stopped, so as to prevent the glue from drying up.
◎ With brush wheel to remove the corner cutting waste, so as to prevent uneven gluing on the flap.
◎ With light pressure type transfer wheel to protect the strength of paperboard.
Folding part
◎ Computerized or electrically move folding arms, HMI automatic control. Automatic tracking slotting unit, synchronous operation.
◎ Equipped with front and rear traverse moving screw rods to synchronously adjust the movement of folding arms on both sides.
◎ With adjustable folding bar.
◎ With elastic pressure wheel for upper conveyor belt.
◎ With down synchronous conveyor belt.
◎ With side wheels for rectification, which laterally correct position according to the thickness of paperboard.
◎ With belt tensioning device.
◎ Two frequency conversions motors are used to adjust the speed on both sides of the down belt separately, when the speed of the upper and down belts is different, it can be adjusted to the same speed, and the speed difference can be fine adjusted to correct the cardboard.
◎ Both belt and stick are used for folding, which is convenient to adjust the folding angle and is easy to operate.
◎ The pre-pressing part: the gap between the upper and down rollers for pre-pressing can be adjusted. It can press 4-18 mm thick folding carton. With human-machine interface, easy to adjust.
Shaping counting stacking part
◎ With paper flapping correction device to eliminate the scissors problem, and achieve the better effect of carton gluing.
◎ With automatic counting function, can set the number of each bale of cartons.
◎ Adopt computer counting to accurately push out paper bale.
◎ With computerized displacement function of front and back baffles, can input size in touch screen, automatic control.
◎ Equipped with a transverse walking device, which can be adjusted according to the cardboard position and size in the folding part.
Ejecting conveying part
◎ The upper and down belts are used for synchronous conveying to ensure the stable transfer of small paperboard.
◎ With the lateral moving device of the upper paper pressing holder, which can be adjusted electrically according to the length of the cardboard.
◎ With the lifting device of the upper paper pressing holder, which can be adjusted electrically according to the height of the cartons.
Automactic bundling machine
◎ Strapping speed:16bales/min.
◎ PP strapping belt specification: Width 5mm, thickness 0.5-0.8mm.
◎ Minimum packing size: Width 400mm * Height 60mm.
◎ Standard frame size: Width 1250mm* Height 500mm.
