XLS-1200 Servo Model High Speed Automatic Printer Folder Gluer Linkage Line
The average speed is 8000-18000pcs/hour, speed fast, which greatly improves the production efficiency.Automatic gluing, automatic folding, automatic correction, automatic counting, automatic stacking, only two people can finish the whole process.
Keywords:
Classification:
Carton printer folder gluer linkage line
Product details

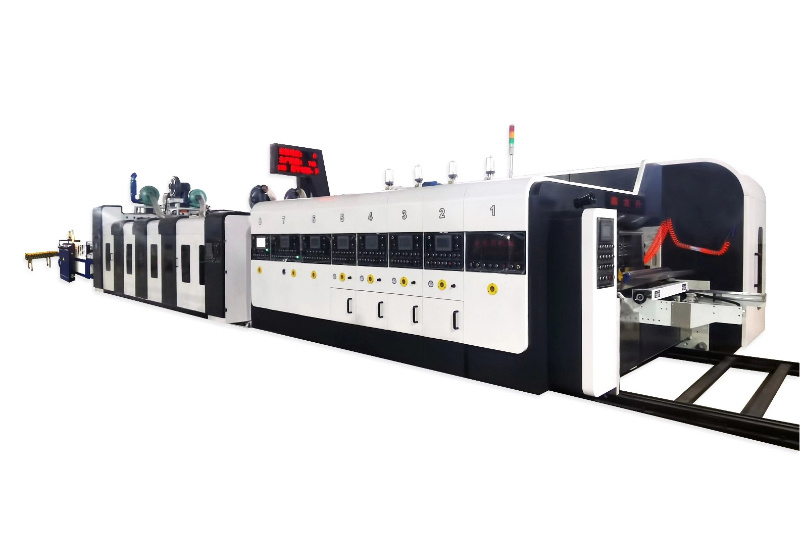

MACHINE FEATURES
◎ The average speed is 8000-18000pcs/hour, speed fast, which greatly improves the production efficiency.
◎ Automatic gluing, automatic folding, automatic correction, automatic counting, automatic stacking, only two people can finish the whole process.
◎ The folding arms adopt elastic pressure wheel and suction belt to convey, and the conveying is accurate. The two folding arms adopt HMI correction, computerized adjustment, and with pre-pressing, shaping and correction devices, which can eliminate the fishtail problem, and reduce the waste rate.
◎ With the speed differential correction function to eliminate scissors problem.
◎ Shaping and ejector part: automatic flapping, paper receiving, stacking, pushing out are all precisely controlled by the servo system, and the circulation speed is fast. It can move left and right according to the folding size of paperboard.
◎ The folder gluer inline can be linked adjusted with the printing machine. Paper feeding, emergency stop, jogging, the phase of each unit, the lateral phase of each unit, the position of the lead edge feeding baffle, the slotting and creasing position, etc. can be adjusted on the control panel of the folder gluer inline, which can avoid the cardboard waste caused by long adjustment time.
SPECIFICATIONS
XLS-1200 ServoType gluing box linkage line machine |
|
Model |
1200 Servo Model |
Max mechanical speed |
300 m/min |
Min folding size(A*B) |
350*260 (mm) |
Max folding size(A*B) |
1150*1200 (mm) |
Width of flapping |
Below 45mm |

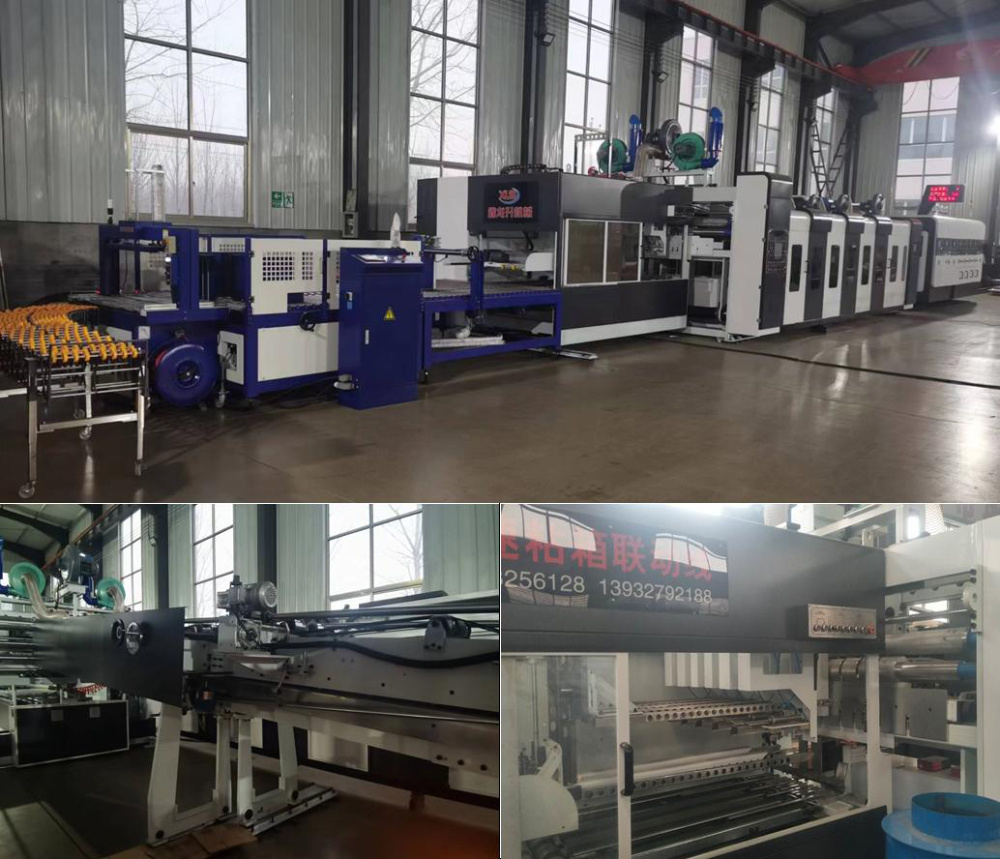

FACTORY BUILDING
Gluing part
◎ HMI control, touch screen operation.
◎ With wheel type gluing system, adopts low frequency operation to prevent glue from solidifying when the machine is not running for a short time.
◎ The gap adjustment of the glue wheel is convenient, which can adapt to the glue application of 2-9mm thick paperboard, and the glue amount can be adjusted easily.
◎ The lateral movement of the gluing wheel is electrically adjusted by the linear guiding rail, and can set the value to automatically move the gluing wheel.
◎ Automatic tracking host, synchronous operation.
◎ With paper feeding switch to avoid cardboard waste.
Folding part
◎ Computerized or electrically move folding arms, HMI automatic control. Automatic tracking slotting unit, synchronous operation.
◎ Avoid paper grabbing or blocking problem between the folder gluer inline and slotting unit.
◎ The front and rear transmission shafts are located at the top of the folding arm, and the movement of the folding arms on both sides are adjusted synchronously.
◎ With adjustable folding bar.
◎ With elastic pressure wheel for upper conveyor belt.
◎ With down synchronous conveyor belt.
◎ With side wheels for rectification, which laterally correct position according to the thickness of paperboard.
◎ The tension of the upper belt is set by the cylinder, and the belt can be extended for automatic compensation.
◎ Two servo motors are used to adjust the speed on both sides of the down belt separately, when the speed of the upper and down belts is different, it can be adjusted to the same, and the speed difference can be fine adjusted to correct the paperboard.
◎ Both belt and rubber stick are used for folding, which is convenient to adjust the folding angle and is easy to operate.
◎ The pre-pressing part: the gap between the upper and down rollers for pre-pressing can be adjusted. It can press 4-18 mm thick folding carton. With human-machine interface, easy to adjust.
Shaping stacking part
◎ With wind pressure to drop paperboard, front flapping for shaping.
◎ Electrically adjust the stacking part.
◎ With computerized displacement function of front and back baffles.
◎ Paper stacking and alignment adopt mechanical flapping and sensor detection to realize full automation.
◎ Adopt computer counting (sensor detection), convenient setting, simple operation, safe and reliable structure.
◎ Adopt computer counting to accurately push out paper bale.
Counting ejecting part
◎ The number of cartons per bale can be set in the range of 15 ~ 30 sheets, and automatic pushing out can be set.
◎ Servo control the rapid lifting, forward and backward movement of the paper receiving rack.
Automactic bundling machine
◎ Strapping speed:16bales/min.
◎ PP strapping belt specification: Width 5mm, thickness 0.5-0.8mm.
◎ Minimum packing size: Width 400mm * Height 60mm.
◎ Standard frame size: Width 1250mm* Height 500mm.
