XLS-1050 Model High Speed Automatic Printer Folder Gluer Linkage Line
The average speed is 20000pcs/hour, speed fast, which greatly improves the production efficiency.Automatic gluing, automatic folding, automatic correction, automatic counting, automatic stacking, only two people can finish the whole process.
Keywords:
Classification:
Carton printer folder gluer linkage line
Product details
MACHINE FEATURES
◎ The average speed is 20000pcs/hour, speed fast, which greatly improves the production efficiency.
◎ Automatic gluing, automatic folding, automatic correction, automatic counting, automatic stacking, only two people can finish the whole process.
◎ The folding arm adopts elastic pressure wheel and suction belt to convey, and the conveying is accurate. The adjustment of carton folding size and paperboard width is completed automatically.
◎ Shaping counting and stacking part: automatic flapping, paper receiving, stacking, pushing out are all precisely controlled by frequency conversion motor, and the circulation speed is fast. The counting part can move left and right according to the folding size of paperboard.
◎ The folder gluer inline can be linked adjusted with the printing machine. The phase of each unit, the transverse phase of each unit, the position of the lead edge feeding baffle, the slotting and creasing position, etc. can be adjusted on the control panel of the folder gluer inline, which can avoid the cardboard waste caused by long adjustment time.
SPECIFICATIONS
|
XLS-1050 Model High Speed Automatic Printer Folder Gluer Linkage Line |
|
|
Model |
1050 Model |
|
Max mechanical speed |
220 m/min |

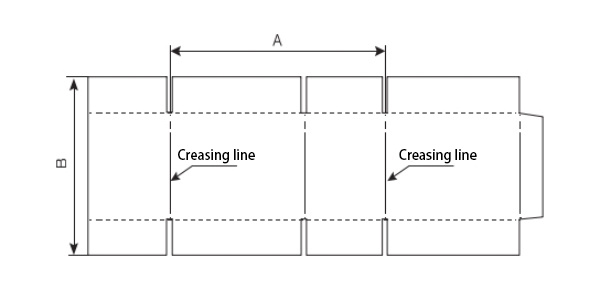

| Min folding size（A*B） |
210*150 （mm） |
| Max folding size（A*B） |
1070* 1050 （mm） |
| Width of flapping |
Below 45mm |

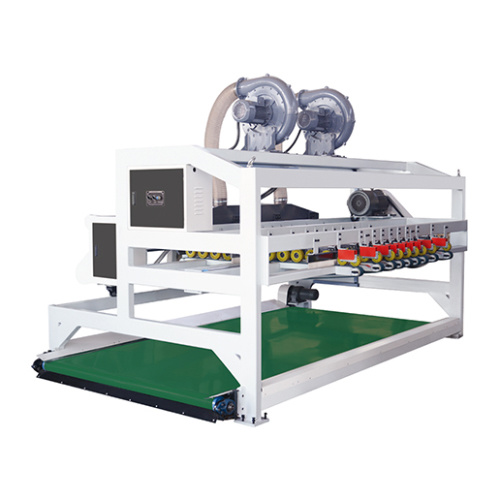

Stripping Unit
◎ With two high pressure blowers and air blades to remove the impurities on the paperboard surface.
◎ With double row brush to help removing impurities on the paperboard surface.
◎ With transverse waste removal belt to take all wastes out.
◎ Adopt light pressure sun wheel to transfer paper, protect the strength of cardboard.
Gluing part
◎ Computerized adjust the position of gluing wheel, HMI control.
◎ With wheel type gluing system.
◎ With gluing wheel autorotation function when the machine is stopped, so as to prevent the glue from drying up.
◎ With brush wheel to remove the corner cutting waste, so as to prevent uneven gluing on the flap.
◎ With light pressure type transfer wheel to protect the strength of paperboard.
Folding part
◎ Computerized move folding arms, HMI automatic control.
◎ With adjustable folding bar.
◎ With elastic pressure wheel for upper conveying belt.
◎ With down synchronous conveyor belt.
◎ With side wheels for rectification.
◎ With belt tensioning device.
Shaping counting stacking part
◎ With paper flapping correction device.
◎ With automatic counting function.
◎ With computerized displacement function of front and back baffles.
Ejecting conveying part
◎ With electric lifting device for upper paper pressing belt.
◎ With electric horizontal moving device of upper paper pressing belt.
◎ Equipped with paper conveying platform, convenient to connect all kinds of bundling machines, strong adaptability.

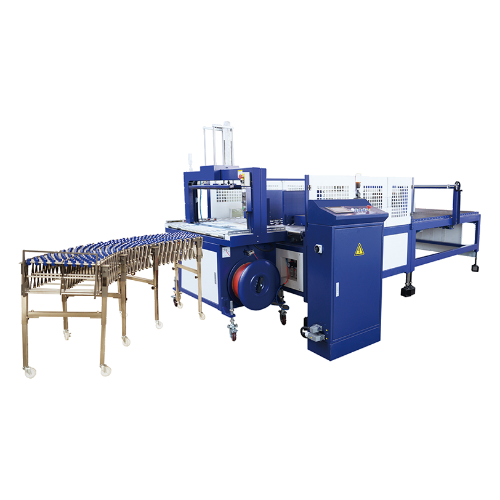

Automactic bundling machine
◎ Strapping speed:16bales/min.
◎ PP strapping belt specification: Width 5mm, thickness 0.5-0.8mm.
◎ Minimum packing size: Width 400mm * Height 60mm.
◎ Standard frame size: Width 1250mm* Height 500mm.
