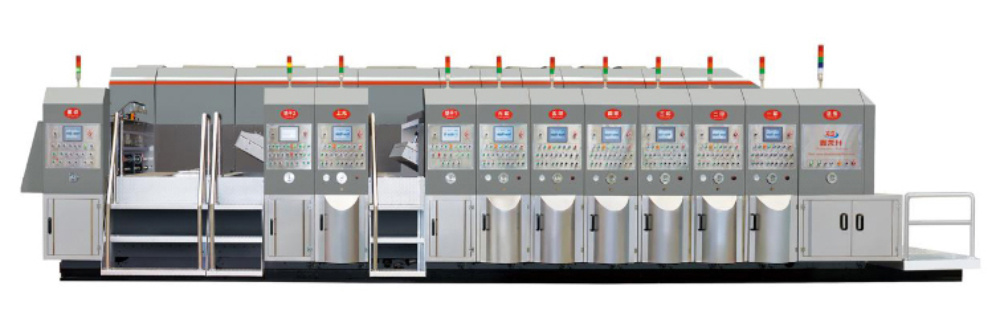

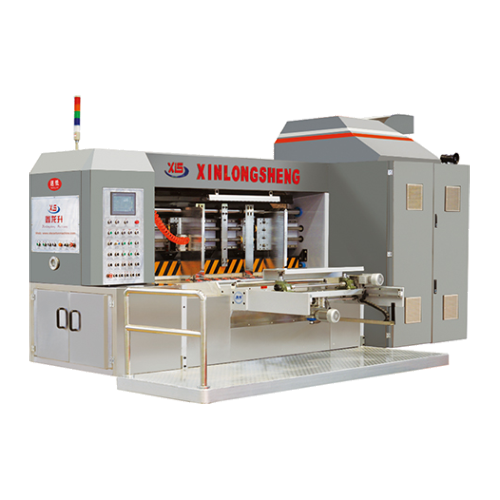

XIS-HD Series High-Definition Full Vacuum Transfer Printing Coating Drying Rotary Die-Cutting Machine
The whole machine is designed in strict accordance with high standards and high efficiency, with the concept of man-machine integration and centralized computer control. It has multiple protection functions such as remote maintenance, fault self-test and alarm，etc.
Keywords:
Classification:
Carton printer slotter die-cutter machine
Product details
MACHINE FEATURES
◎ The whole machine is designed in strict accordance with high standards and high efficiency, with the concept of man-machine integration and centralized computer control. It has multiple protection functions such as remote maintenance, fault self-test and alarm，etc.
◎ All electronic components adopt European standards.
◎ With movable unit, stable and simple structure. simple operation and convenient maintenance
◎ Full vacuum transfer, servo control phase adjustment, to ensure high quality, high Lpi, high demand for precision printing products.
◎ Equipped with infrared drying system, water-based coating system.
◎ All driving gears are 80 thick and made of high-quality alloy steel 20CrMnTi by carburizing and precisely grinded to ensure long-term transmission accuracy.
◎ All rollers are made of high-quality steel, which has been quenched and tempered. The dynamic and static balance tests are carried out twice to ensure the stable and reliable operation at high-speed.
◎ The whole machine is made of high quality materials and spare parts. Wallboard and important parts are made by big CNC machining center.
◎ Optional: Unit fixed type full servo drive control system.
SPECIFICATIONS
|
Parameter |
Unit |
Model |
|||
|
280*2400 |
408*2400 |
408*2800 |
|||
|
Inner width |
mm |
2400 |
2400 |
2800 |
|
|
Max running speed |
Pcs/min |
220 |
200 |
200 |
|
|
Max feeding size |
mm |
810*2150 |
1200*2150 |
1200*2550 |
|
|
Max printing size |
mm |
810*1800 |
1200*2000 |
1200*2400 |
|
|
Min processing size |
mm |
300*600 |
350*650 |
350*650 |
|
|
Max die-cutting size |
mm |
810*2100 |
1200*2100 |
1200*2500 |
|
|
Printing accuracy |
mm |
±0.35 |
±0.35 |
±0.35 |
|
|
Standard plate thickness |
mm |
7.2 |
7.2 |
7.2 |
|
|
Cardboard thickness |
mm |
2-11 |
2-11 |
2-11 |
|
Feeding Unit
◎ Adopt Germany Bosch Rexroth servo system which controls the lead edge feeder and drives the double rubber rollers feeding. With fast reaction speed, high feeding precision and good stability.
◎ Optional: Qingdao Kingway brand less pressure type lead edge feeder.
◎ Vacuum suction lead edge feeding, frequency converter controls air volume, and the air volume can be adjusted according to the paperboard size.
◎ Computerized adjust the feeding gap, touch screen control. The left-right movement of side baffles and front baffles, and the back-forth movement of back holder are automatically adjusted. The feeding thickness of the front baffles are electrically adjusted.
◎ Equipped with a strong dust removal device to remove the impurities on the surface of the paperboard and improve the printing quality.
◎ The paper feeding length can be computerized adjusted automatically, and the operation is simple and fast.
◎ The upper feeding roller is wrapped with wear-resistant polyurethane, and with the air pressure adjustment function to prevent the paperboard from deformation and assure accurately feeding.
◎ Left and right movement of front baffle and side baffles adopt linear guide positioning, with high feeding accuracy.

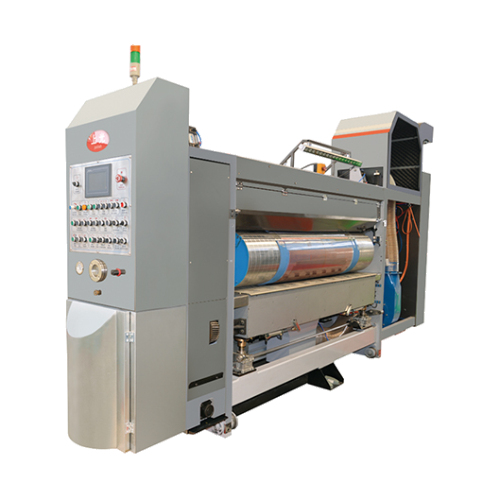

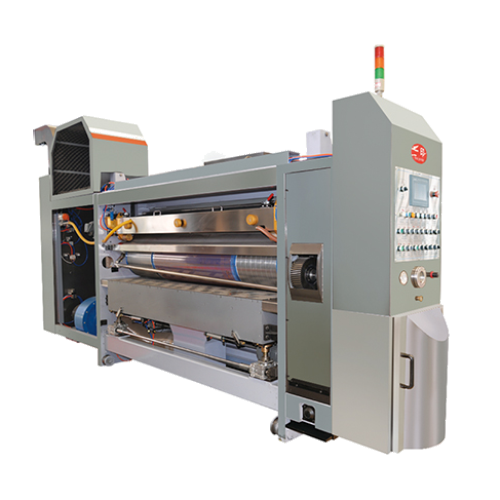

Printing Unit
◎ Printing roller and pressure roller are made of high quality steel, surface grinded and hard chrome plated.
◎ With dynamic and static balance correction, ensuring stable high-speed operation.
◎ Printing phase is driven by servo and adjusted by touch screen.
◎ Adopt plate hanging mechanism, with plate hanging correction function, easy and fast operation.
◎ For installation and unloading of printing plate, equipped with foot switch to control forward and backward rotation for quick adjustment.
◎ With automatic return to zero, memory and reset function.
◎ The gap of anilox roller and pressure roller is displayed on the touch screen, and input size to adjust automatically.
◎ Electrically transverse displacement of plate roller, with adjustment range 25mm.
◎ Air volume and pressure of each section of the vacuum suction bellows are automatically adjusted.
◎ With air knife drying system, which can improve printing speed and quality.
◎ With high Lpi ceramic anilox roller and pneumatic ink doctor blade system, can ensure high quality printing demand.
◎ The single doctor blade ink supply system can effectively reduce the bad effect of dust on the surface of roller, ensuring quality while solving the ink leakage problem caused by improper operation of the double doctor blade system.
◎ The special aluminum alloy arc-shaped scraping chamber can improve the bending resistance by 30% and save the ink supply by 20%.
◎ With Teflon environmental protection layer, which is convenient for ink cleaning without sticking to the cavity.
◎ The vacuum suction transfer wheels cooperates with the pressure roller to transfer the cardboard, which ensure the printing chromaticity accuracy of ± 0.35mm.
Coating Unit
◎ Water based coating, this unit can also be used as a printing unit.
◎ With paper jam sensor, the operation is more safe and reliable.
Drying Unit（Widen type）
◎ Servo system control, independent vacuum transfer, ensure the feeding accuracy.
◎ With infrared drying system, can adjust the drying temperature and adjust the drying area by sections, which is convenient to adjust and save energy.
◎ Linear guide positioning control bellows up and down, more stable when high speed operation.
◎ Strong matching, can fulfill the needs of a variety of products.
◎ With shutdown protection function, enhances the safety factor and improves the production efficiency.
◎ With widened type dryer, which is helpful to the drying speed of coating oil.
Rotary Die-cutting Unit
◎ The gap between the feeding rollers and gap between die-cutting rollers are displayed on touch screen, and input value to adjust automatically.
◎ Automatic speed compensation for rubber roller, and the rubber roller automatically moves laterally in the production process.
◎ Equipped with rubber repair device, which can repair the rubber repeatedly, to prolong the service life of the rubber and save cost.
◎ Equipped with waste removal device: all paper scraps and paper edges can be taken out from the machine.
◎ Servo system control, independent drive, which eliminate the influence on printing and improve the die-cutting accuracy.
